تفاصيل المنتج:
|
| عبر المراجع: | W01-358-6935، W01-358-6856، FD200-19499، 2B9-201، S14318،003318،702932-01 | المادة الرئيسية: | مطاط + معدن |
|---|---|---|---|
| اسم المنتج: | زنبرك هوائي مزدوج ملتوي | ضمان: | 12 شهرا |
| وقت الشحن النموذجي: | 3-10 أيام | نوع الخوار: | مزدوجة ملتوية |
| عملية: | مملوء بالغاز | الوزن الصافي: | 3.89 كجم |
| البعد الحزمة: | 24*24*24 ملم | لوحة ديا: | 160 ملم |
| التعبئة: | التعبئة المحايدة أو التعبئة المخصصة |

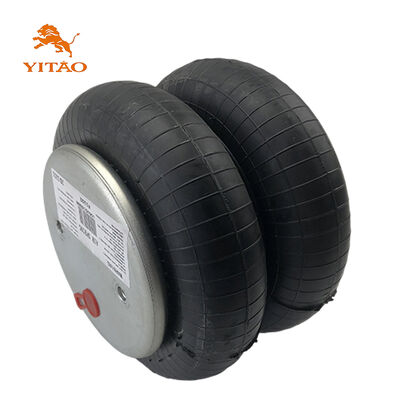

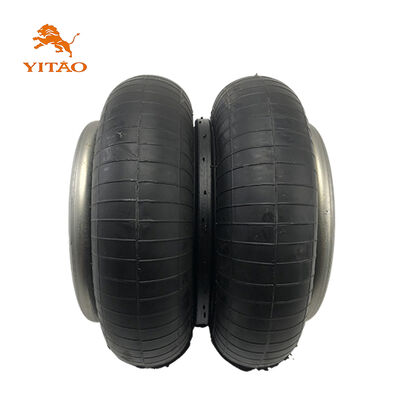

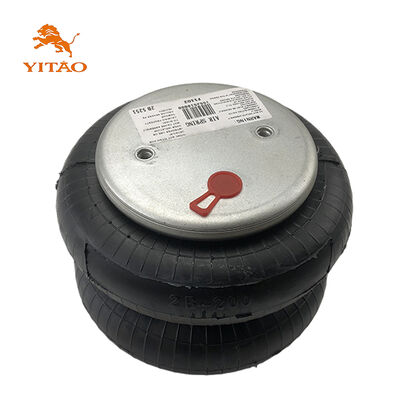

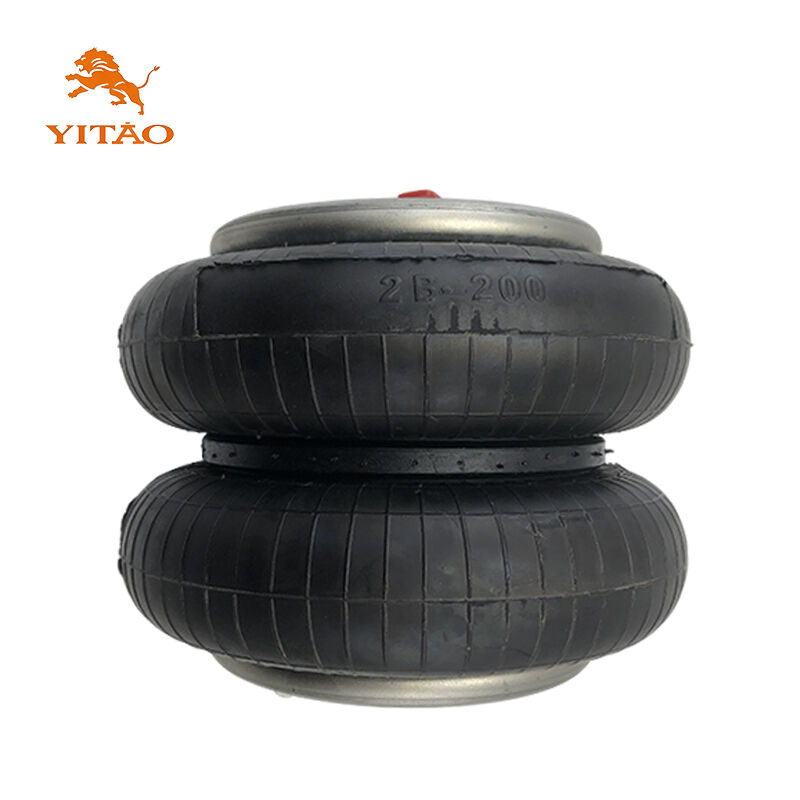

Steel And Rubber truck air spring Firestone W01-358-6935 Contitech FD200-19499
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
Features
Benefits
Require little to no maintenance
Pressure tested for quality assurance
Increase towing and hauling capabilities
Replace worn out oem air bags
Increase life of other suspension components
Manufacturer: Firestone
Double Convoluted Air Bag
About YITAO
We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.
Product picture
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
Yes, OEM services are welcomed.
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
Feel free to reach out. We'll get back to you within 24 hours (or sooner if we can!) and are excited to work with you.
