تفاصيل المنتج:
|
| رقم المنتج الأصلي: | W01-M58-8473,93911,6607NP01,20.6607.1CM,1R11-805,2.62178,1DF17A-1,MLF7170,D11B42,134302,04.060.6206. | عمر الفاروق NO2: | 36418K،9518110060،20582214،20531987،1076418،31171695،20456156،20374511 |
|---|---|---|---|
| يكتب: | شاحنة الهواء الربيع | طلب: | لتعليق الشاحنة الهوائية |
| التعبئة: | التعبئة المحايدة أو التعبئة المخصصة | حالة: | جديد |
| ضمان: | 1 سنة | الحد الأدنى لكمية: | 50 قطعة |
| تكوين الختم: | تجعيد غطاء لوحة + لوحة الختم | مادة: | ممحاة |
| مادة المكبس: | حديد | ||
| إبراز: | Truck Air Spring for Firestone W01-M58-8473,Truck Air Spring compatible with Volvo 20582214,Truck Air Spring replacement for Goodyear 1R11-805,Truck Air Spring compatible with Volvo 20582214,Truck Air Spring replacement for Goodyear 1R11-805 |
||

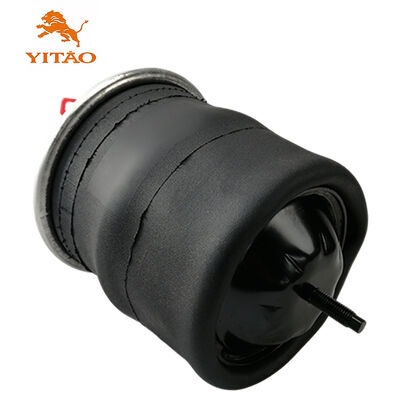

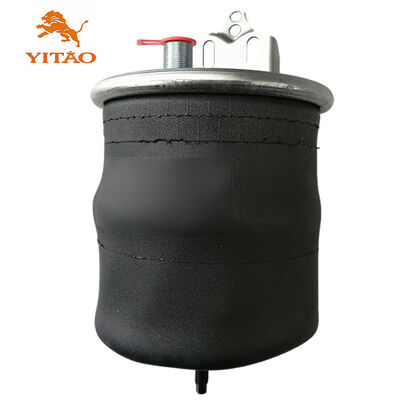

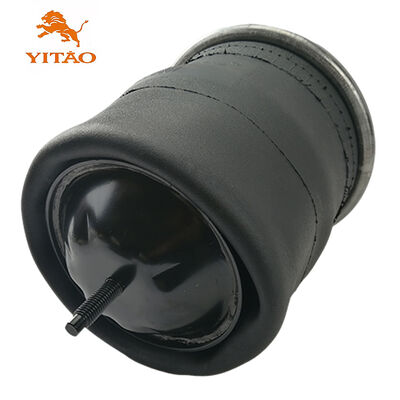

1V 7752 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8473/AB Vovo 20582214/Goodyear 1R11-805. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-M58-8473 | W01 M58 8473/W01M588473/W01M58-8473/W01-M588473/W01-M58-8473 |
| Contitech | 6607NP01 | 6607NP01 |
| Goodyear | 1R11-805 | 1R11 805/1R11805/1R11-805 |
| Phoenix | 1DF17A-1 | 1DF17A 1/1DF17A1/1DF17A-1 |
| Dunlop FR | D11B42 | D11B42 |
| Templim | 04.060.6206.060 | 04.060.6206.060 |
| WABCO | 9518110060 | 9518110060 |
| AB Vovo | 20582214 / 20531987 | 20582214 20531987/2058221420531987/20582214/20531987 |
| AB Vovo | 1076418 / 31171695 | 1076418 31171695/107641831171695/1076418/31171695 |
| AB Vovo | 20456156 / 20374511 | 20456156 20374511/2045615620374511/20456156/20374511 |
| Granning | 93911 | 93911 |
| Airfren | 20.6607.1CM | 20.6607.1CM |
| DT | 2.62178 | 2.62178 |
| Meritor | MLF7170 | MLF7170 |
| Airtech | 134302 | 134302 |
| Airtech | 36418K | 36418K |
| Specifications | Parameters |
|---|---|
| Outer diameter | φ204 |
| Weight | 8.037 kg |
| Package Dimensions | 28*28*38.5cm |
| Natural height | 545mm |
| Maximum height | 495mm |
| Minimum height | 207mm |
| Extended Height | To be updated |
| Compressed Height | To be updated |
| Top Plate Width | 231mm |
| Piston Width | 168mm |
